UBDDGS90ABK

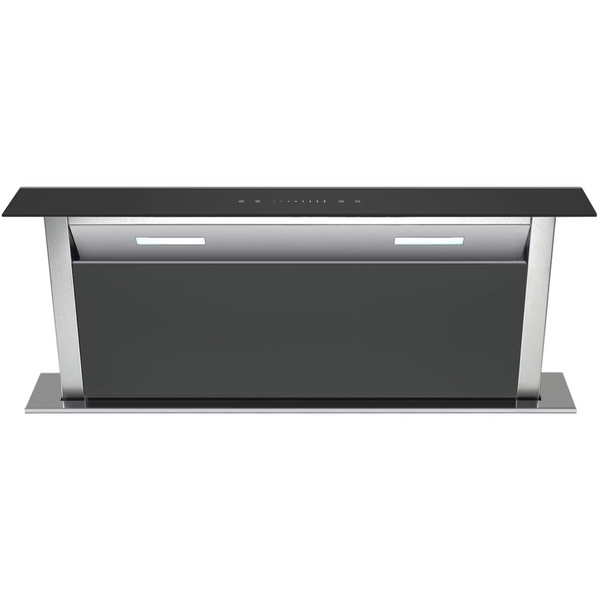

CATA 500 - 90cm Downdraft Cooker Hood Black
Technical Specifications

Brand
Unbranded
Barcode
8422248613750
Product Weight (kg)
28.5
Packed Weight (kg)
34.5
Colour
Black
Product Dimensions (W x D x H)
880 x 368 x 725 - 1110mm
Width (cm)
90
Guarantee
5 Years Parts 2 Years Labour
Energy Rating
B
Power Requirements
Requires Connection to 3A Fused Spur
Cable Included
Yes
Plug Fitted
No
Fuse Rating (amp)
3
Maximum Power Rating (watts)
232
Packed Dimensions (W x D x H)
965 x 490 x 805mm
Control Type
Touch Control
Number of Lights
2
Hoods Venting Type
External or Recirculation
Cooker Hood Style
Downdraft
Lighting Type
LED
Number of Speeds
3
Extraction Rate (m3/hr)
605
Fan Efficiency Class
B
Lighting Efficiency Class
B
Grease Filtering Efficiency Class
F
Decibel Rating (decibels)
73
Hoods Vent Diameter (mm)
150
Grease Filter Type
Aluminium Mesh
Washable Grease Filter
Yes
Carbon Filter Code
1
Vent Kit Code
KITVENT2F
Description

Designed for modern kitchens, the downdraft extractor offers a perfect combination of style and functionality. With a sleek stainless steel and black glass finish, it complements contemporary kitchen designs while providing powerful extraction. The motorised lift mechanism allows the extractor to rise smoothly from the worktop when needed and retract when not in use, maintaining a clean and uncluttered space. Suitable for use with gas hobs, it efficiently removes cooking vapours and odours, keeping the kitchen environment fresh.

With four fan speeds, the downdraft extractor provides flexible ventilation options, delivering a maximum airflow of 605.5 cubic metres per hour for effective extraction. The touch control blue LED display allows for precise adjustments, ensuring ease of use. Two energy efficient one watt LED lights illuminate the cooking area, enhancing visibility while adding a stylish touch. A 150 millimetre ducting system ensures efficient air extraction, improving overall kitchen air quality.

Operating at a maximum noise level of 73 decibels, the downdraft extractor balances performance and comfort. Designed for efficiency, it features the ATFILT3 filter, providing high quality filtration to effectively remove grease and odours. Whether installed in an island or against a wall, this extractor delivers outstanding functionality without compromising on aesthetics, making it a premium addition to any modern kitchen.

Key Features

  • Stainless steel/black glass
  • 4 fan speeds
  • 2 x 1W LED lights
  • Touch control blue LED display
  • Motorised lift mechanism
  • Can be used with a gas hob
  • Max noise level: 73dB
  • 605.5m³/hr extraction
  • Filter code: ATFILT3
  • 150mm ducting
  • Dimensions: W880 x D368 x H725-1100mm
