| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

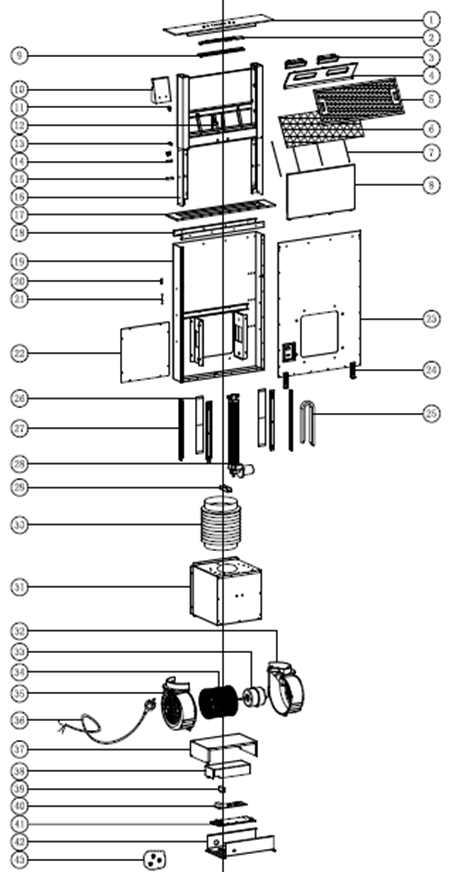

| Drawing 1 | ||||
| 1 | 120010300068UBDDGS90ABK
SWITCH PANEL ASSEMBLY(SET) | On Order | 29.99 | |
| 2 | 1400500660
INTERFACE PCB (REPLACES 1400500320) | Low Stock | 29.99 | |
| 3 | 1400600188
LED LIGHT | On Order | 14.99 | |
| 4 | 1130201696
LAMP PANEL | In Stock | 17.99 | |
| 5 | 1300100144
METAL GREASE FILTER 700 X 190MM | In Stock | 14.99 | |
| 6 | 1309800193
CARBON FILTER MAT | On Order | 19.99 | |
| 7 | 1309800227
CARBON FILTER MAT FIXED WIRE | On Order | 1.99 | |
| 8 | 1130204476UBDDGS90ABK
DOOR PLATE ASSEMBLY(SET) | Low Stock | 60.99 | |
| 9 | 120010300067
SWITCH BOX COVER | Low Stock | 4.99 | |
| 10 | 1130201680
ACTUATOR COVER (UPPER) - SPINDLE COVER | Low Stock | 9.99 | |
| 11 | 1400300001
MICRO SWITCH | In Stock | 8.99 | |
| 12 | 1130201681
ELECTRIC PUSHROD UPPER FIXING BRACKET | Not Available | ||
| 13 | 1130203525
MICROSWITCH BRACKET | Low Stock | 9.99 | |
| 14 | 1130201685
MICROSWITCH BRACKET | Low Stock | 8.99 | |
| 15 | 1130201684
MICRO SWITCH PRESURE PANEL | In Stock | 13.99 | |
| 16 | 1139801681
SHELL ENHANCE STRIP | Not Available | ||
| 17 | 1130201701
PANEL | Not Available | ||
| 18 | 1130401141
CONNECTED BOARD | Not Available | ||
| 19 | 1130401140UBDDGS90ABK
CASING ASSEMBLY(SET) | Not Available | ||
| 20 | 1300500024
SPRING | Low Stock | 8.99 | |
| 21 | 1309900049
SPRING GUIDE SHAFT | Not Available | ||
| 22 | 1130401150
BLANKING PLATE | Not Available | ||
| 23 | 1139802977
BODY COVER (NEW TYPE) | Not Available | ||
| 24 | 1140400182
FIXED FEET | Low Stock | 8.99 | |
| 25 | 1309900056
DRAG CHAIN | Not Available | ||
| 26 | 1130401143
SPINDLE FILLER | Low Stock | 6.99 | |
| 27 | 1309800322
SLIDE RAILS | In Stock | 9.99 | |
| 28 | 1400200245
DOWNDRAFT HOOD ACTUATOR (SPINDLE) | Low Stock | 109.99 | |
| 29 | 1130201682
ACTUATOR FIXING BRACKET (LOWER) | Not Available | ||
| 30 | 120010500008
VENT HOSE (150MM DIA) | In Stock | 9.99 | |
| 31 | 1130401147UBDDGS90ABK
CAVITY ASSEMBLY(SET) | Not Available | ||
| 32 | 12001010300175
FAN ASSEMBLY - RIGHT CASING | In Stock | 8.99 | |
| 33 | 1400200248
230W DOWNDRAFT MOTOR | Low Stock | 39.99 | |
| 34 | 12001010300011
IMPELLER | In Stock | 10.99 | |
| 35 | 12001010300018
FAN ASSEMBLY - LEFT CASING | In Stock | 11.99 | |
| 36 | 1400400024
POWER CABLE (NO PLUG FITTED) | Low Stock | 9.99 | |
| 37 | 1130401144
PCB OUTTER COVER | Low Stock | 9.99 | |
| 38 | 12001010200064
PCB BOX COVER (CAN USE AA0000000450) | Low Stock | 6.99 | |
| 39 | 1400100080
CAPACITOR FOR 230W DOWNDRAFT MOTOR | In Stock | 4.99 | |
| 40 | 1400500319
PCB (NEW TYPE) | Low Stock | 32.99 | |
| 41 | 12001010200143
PCB BOX BOTTOM (USE STOCK THEN AA0000000451) | Low Stock | 8.99 | |
| 42 | 1139801907
PCB BOTTOM COVER | Low Stock | 8.99 | |
| 43 | SBUBDDGS90ABK
SCREW BAG | Not Available | ||
