UBDDGS60ABK

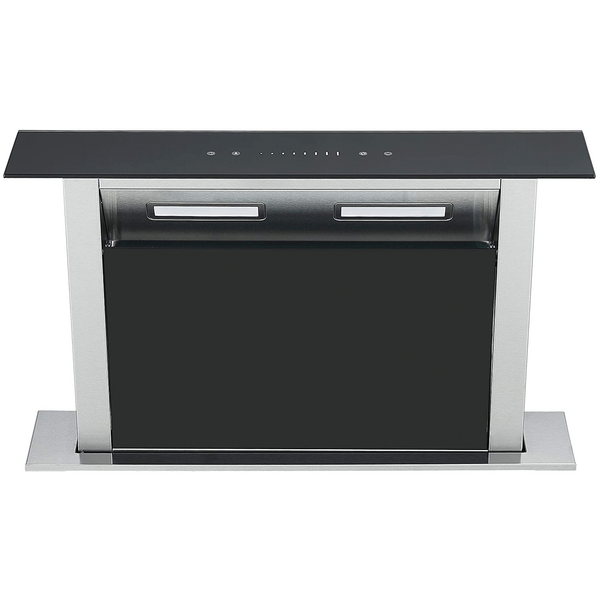

CATA 500 - 60cm Downdraft Cooker Hood Black
Technical Specifications

Brand
Unbranded
Barcode
8422248613743
Product Weight (kg)
23.5
Packed Weight (kg)
27.5
Colour
Black
Product Dimensions (W x D x H)
580 x 368 x 725 - 1100mm
Width (cm)
60
Guarantee
5 Years Parts 2 Years Labour
Energy Rating
B
Power Requirements
Requires Connection to 3A Fused Spur
Cable Included
Yes
Plug Fitted
No
Fuse Rating (amp)
3
Maximum Power Rating (watts)
232
Packed Dimensions (W x D x H)
665 x 490 x 805mm
Control Type
Touch Control
Number of Lights
2
Hoods Venting Type
External or Recirculation
Cooker Hood Style
Downdraft
Lighting Type
LED
Number of Speeds
4
Extraction Rate (m3/hr)
579.7
Fan Efficiency Class
B
Lighting Efficiency Class
B
Grease Filtering Efficiency Class
F
Decibel Rating (decibels)
72
Hoods Vent Diameter (mm)
150
Grease Filter Type
Aluminium Mesh
Washable Grease Filter
Yes
Carbon Filter Code
1
Vent Kit Code
KITVENT2F
Description

Designed for modern kitchens, the downdraft extractor seamlessly combines style and performance. With a sleek stainless steel and black glass finish, it complements any contemporary kitchen design while offering powerful extraction. The motorised lift mechanism ensures the extractor discreetly rises from the worktop when needed and retracts when not in use, maintaining a clean and uncluttered space. Ideal for use with gas hobs, this extractor efficiently removes cooking vapours and odours, keeping the kitchen fresh.

Equipped with four fan speeds, the downdraft extractor provides versatile extraction options, with a maximum airflow of 579.9 cubic metres per hour for high performance ventilation. The touch control blue LED display offers effortless operation, allowing users to adjust settings with precision. Two energy efficient one watt LED lights illuminate the cooking area, enhancing visibility while adding a sophisticated touch. With a 150 millimetre ducting system, it effectively channels air out of the kitchen for optimal performance.

Despite its power, the downdraft extractor operates at a maximum noise level of 73 decibels, ensuring a balance between performance and comfort. Designed for efficiency, it uses the ATFILT3 filter, ensuring high quality filtration and effective removal of grease and odours. Whether installed in an island or against a wall, this extractor delivers exceptional functionality without compromising on aesthetics, making it a premium choice for any modern kitchen.

Key Features

  • Stainless steel/black glass
  • 4 fan speeds
  • 2 x 1W LED lights
  • Touch control blue LED display
  • Motorised lift mechanism
  • Can be used with a gas hob
  • Max noise level: 73dB
  • 579.9m³/hr extraction
  • Filter code: ATFILT3
  • 150mm ducting
  • Dimensions: W580 x D368 x H725-1100mm
