UBCAN52SV.1

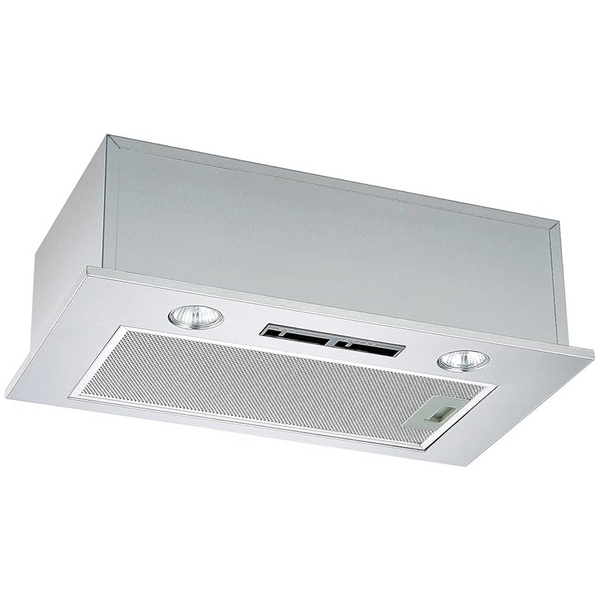

CATA 100 - 52cm Canopy Cooker Hood
Technical Specifications

Brand
Unbranded
Barcode
8422248612593
Colour
Silver
Product Dimensions (W x D x H)
520 x 296 x 162mm
Width (cm)
52
Product Weight (kg)
6
Guarantee
5 Years Parts 2 Years Labour
Energy Rating
C
Power Requirements
Requires Connection to 3A Fused Spur
Cable Included
Yes
Plug Fitted
No
Fuse Rating (amp)
3
Maximum Power Rating (watts)
64
Packed Weight (kg)
7
Packed Dimensions (W x D x H)
585 x 340 x 210mm
Control Type
Slide Control
Number of Lights
2
Hoods Venting Type
External or Recirculation
Cooker Hood Style
Canopy
Lighting Type
LED
Number of Speeds
3
Extraction Rate (m3/hr)
197.5
Fan Efficiency Class
E
Lighting Efficiency Class
A
Grease Filtering Efficiency Class
D
Decibel Rating (decibels)
66
Minimum Height Above Gas Hob (mm)
750
Minimum Height Above Electric Hobs (mm)
650
Hoods Vent Diameter (mm)
150
Grease Filter Type
Aluminium Mesh
Washable Grease Filter
Yes
Carbon Filter Code
ATFILT1
Vent Kit Code
KITVENT1F
Description

This silver canopy cooker hood combines a sleek, understated design with practical features, making it a discreet yet efficient addition to any kitchen. Designed to be integrated into cabinetry, it offers effective extraction while maintaining a seamless appearance. With a maximum extraction rate of 197.5m³/hr, it efficiently removes cooking odours and vapours to keep your kitchen fresh.

The cooker hood features three fan speeds, easily adjusted using the slider control, allowing you to adapt the ventilation to suit your cooking needs. Illuminated by two LED lights, it provides clear visibility of your hob while being energy efficient. Despite its powerful performance, the hood operates at a maximum noise level of 68dB, ensuring a comfortable cooking environment.

Designed for convenience and durability, it uses filter code ATFILT1 and requires 120mm ducting for installation. Built with high-quality materials, this canopy cooker hood delivers reliable performance and long-lasting efficiency, making it a practical choice for any modern kitchen.

Key Features

  • Silver
  • 3 fan speeds
  • 2 x 2W LED lights
  • Slider control
  • Max noise level: 68dB
  • 197.5m³/hr extraction
  • Filter code: ATFILT1
  • 120mm ducting
  • 52cm dimensions: W520 x D296 x H162mm
  • 70cm dimensions: W700 x D296 x H162mm
