| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

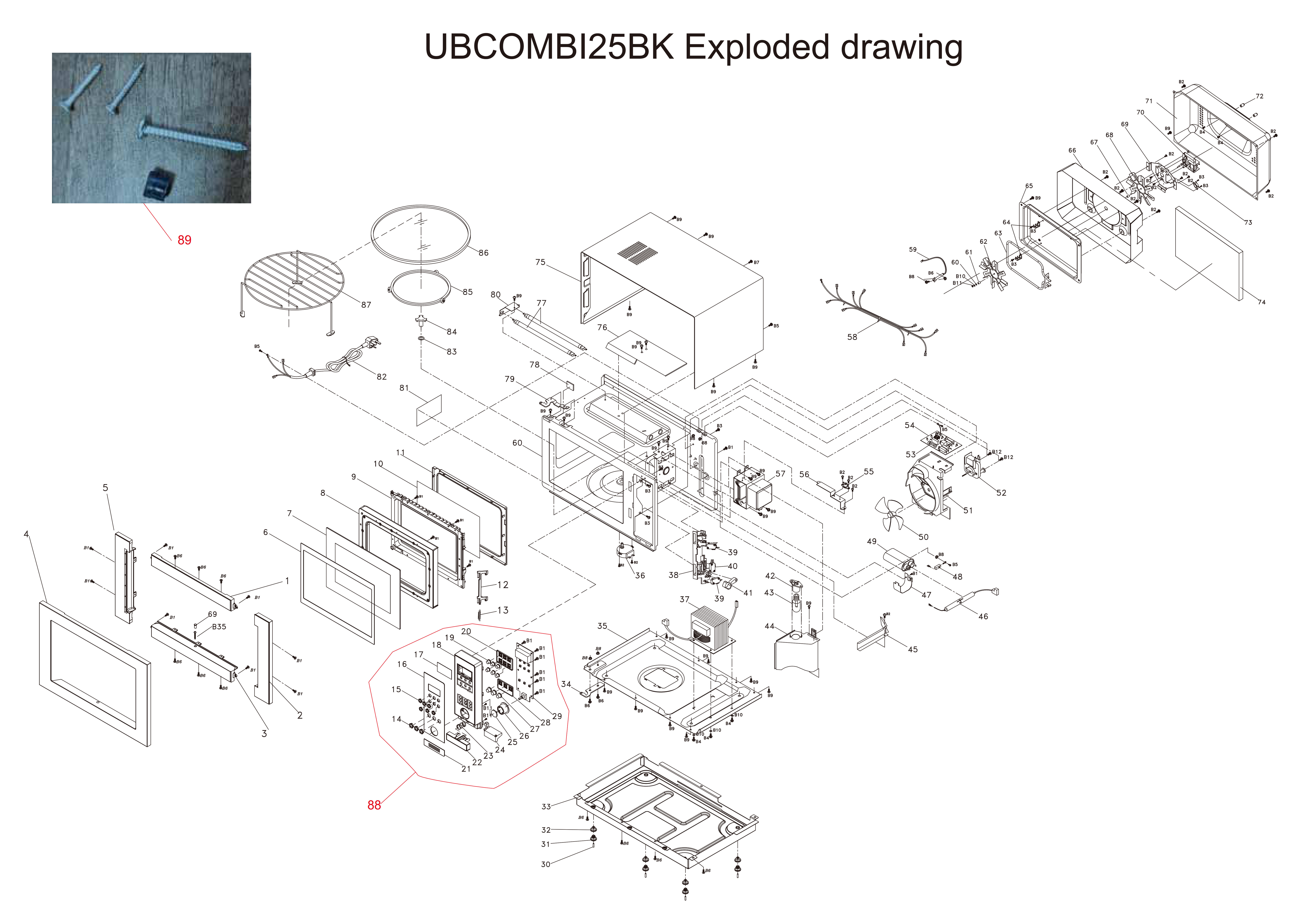

| Drawing 1 | ||||
| 1 | 22200-00400-C0
INNER FRAME - TOP | Low Stock | 16.99 | |
| 2 | 22200-00719-B0
INNER FRAME - RIGHT | Low Stock | 3.99 | |
| 3 | 22200-00401-C0
INNER FRAME - BOTTOM | Not Available | ||
| 4 | 21199-02393-A0
FRAME | Low Stock | 22.99 | |
| 5 | 22200-00718-B0
INNER FRAME - LEFT | Low Stock | 3.99 | |
| 6 | 21299-02570-A0
FACE FRAME COVER | In Stock | 5.99 | |
| 7 | 25300-00975-A0
DOOR OUTER GLASS | Low Stock | 3.99 | |
| 8 | 22100-00687-J0
DOOR FRONT FRAME | Low Stock | 49.99 | |
| 9 | 50200-00047-B0
DOOR INNER FRAME | Low Stock | 7.99 | |
| 10 | 25300-00075-C0
DOOR CONVECTION GLASS | Low Stock | 3.99 | |
| 11 | 22200-00206-C0
DOOR DEFLECTOR FRAME | Low Stock | 3.99 | |
| 12 | 22200-00170-C0
DOOR HOOK | In Stock | 2.99 | |
| 13 | 21599-00058-A0
DOOR SPRING | In Stock | 3.99 | |
| 31 | 22100-00497-B0
FOOT | Low Stock | 6.99 | |
| 32 | 22100-02444-A0
FOOT | Low Stock | 6.99 | |
| 33 | 21199-00326-D0
BASE | Not Available | ||
| 34 | 21299-00203-B0
HINGE - LOWER | Not Available | ||
| 35 | 21199-00106-V0
CHASSIS PLATE | Not Available | ||
| 36 | 23640-10071-A0
TURNTABLE MOTOR | In Stock | 9.99 | |
| 37 | 23240-10092-A0
HV TRANSFORMER | Low Stock | 29.99 | |
| 38 | 22200-00020-F0
INTERLOCK SWITCH BRACKET | In Stock | 4.99 | |
| 39 | 23710-10001-A0
MICROSWITCH A | In Stock | 9.99 | |
| 40 | 23710-10003-A0
MICROSWITCH C | In Stock | 9.99 | |
| 41 | 22200-00171-E0
LATCH RELEASE | Low Stock | 10.99 | |
| 42-43 | 23750-10131-A0
LAMP AND LAMP HOLDER | Low Stock | 14.99 | |
| 44 | 21299-00250-G0
AIR INLET | Not Available | ||
| 46 | 23760-10137-A0
HV FUSE | Low Stock | 7.49 | |
| 47 | 21299-00230-G0
CAPACITOR CLAMP | In Stock | 4.99 | |
| 48 | 23710-10058-A0
HV DIODE | In Stock | 9.99 | |
| 49 | 23710-10042-A0
HV CAPACITOR | On Order | 14.99 | |
| 50 | 22200-00142-C0
FAN IMPELLER | Not Available | ||
| 51 | 22200-00419-D0
FAN COWL | Not Available | ||
| 52 | 236L0-10002-A0
FAN MOTOR | Low Stock | 19.99 | |
| 53-54 | 23300-10010-A0
POWER INPUT PCB (NOISE FILTER) | On Order | 9.99 | |
| 55 | 23750-10012-A0
THERMOSTAT | In Stock | 9.99 | |
| 56 | 21299-00282-C0
THERMOSTAT SUPPORT | Not Available | ||
| 57 | 23110-10002-B0
HV MAGNETRON | In Stock | 25.99 | |
| 58 | 23400-00084-A0
WIRING HARNESS | Low Stock | 4.99 | |
| 59 | 23730-10115-A0
TEMPERATURE SENSOR | In Stock | 8.99 | |
| 60 | 50100-00187-C0
WASHER $$$ | Not Available | ||
| 61 | 21599-00069-B0
SLEEVE $$$ | Not Available | ||
| 62 | 21299-00307-B0
CONVECTION FAN IMPELLER | Low Stock | 10.99 | |
| 63 | 23500-10061-B0
ELEMENT - REAR | Low Stock | 19.99 | |
| 64 | 29400-00002-A0
FIXING HOOK | Low Stock | 9.99 | |
| 65 | 21199-00499-F0
CAVITY INTERNAL FRAME | Not Available | ||
| 66 | 21299-00271-G0
CAVITY REAR PANEL | Not Available | ||
| 67 | 21599-00068-B0
SLEEVE $$$ | Not Available | ||
| 68 | 21299-00398-A0
CONVECTION MOTOR COOLING IMPELLER | In Stock | 10.99 | |
| 69 | 21299-00397-E0
CONVECTION MOTOR BRACKET | Not Available | ||
| 70 | 236L0-10037-A0
CONVECTION MOTOR | In Stock | 9.99 | |
| 71 | 21199-00324-H0
REAR COVER $$$ | Not Available | ||
| 72 | 22300-00014-B0
MOUNTING DEPTH RESTRICTOR | Not Available | ||
| 73 | 23750-10018-A0
THERMOSTAT | In Stock | 19.99 | |
| 74 | 29300-00011-D0
REAR INSULATION $$$ | Not Available | ||
| 75 | 21199-01746-A0
TOP COVER $$$ | Not Available | ||
| 76 | 21299-00273-A0
HEAT SHIELD | Not Available | ||
| 77 | 23500-10012-A0
ELEMENT - UPPER/GRILL | On Order | 12.99 | |
| 79 | 21299-00201-A0
HINGE - UPPER | Low Stock | 12.99 | |
| 80 | 21299-00579-B0
GRILL ELEMENT BRACKET | Not Available | ||
| 81 | 29100-00004-B0
MAGNETRON FILTER | Low Stock | 3.99 | |
| 82 | 23410-10095-B0
POWER CABLE (TYPE G PLUG) | In Stock | 9.99 | |
| 83 | 22200-00203-B0
WASHER | Not Available | ||
| 84 | 22300-00018-A0
TURNTABLE SPIGOT | In Stock | 8.99 | |
| 85 | 22300-00038-A0
TURNTABLE SUPPORT RING | In Stock | 9.99 | |
| 86 | 25100-00004-A0
TURNTABLE *GLASS* | In Stock | 24.99 | |
| 87 | 21599-00511-A0
GRILL RACK | In Stock | 13.99 | |
| 88 | 69418040
CONTROL PANEL ASSEMBLY | Low Stock | 59.99 | |
| 89 | 2616800001ASSY
MOUNTING ACCESSORIES SCREW KIT | Low Stock | 5.99 | |
