DiscontinuedThis model is no longer in production. Genuine spare parts are still available to order from the Parts tab below.
UBBKWC60
CATA 300 - 60cm Dual Zone Wine Cooler Black

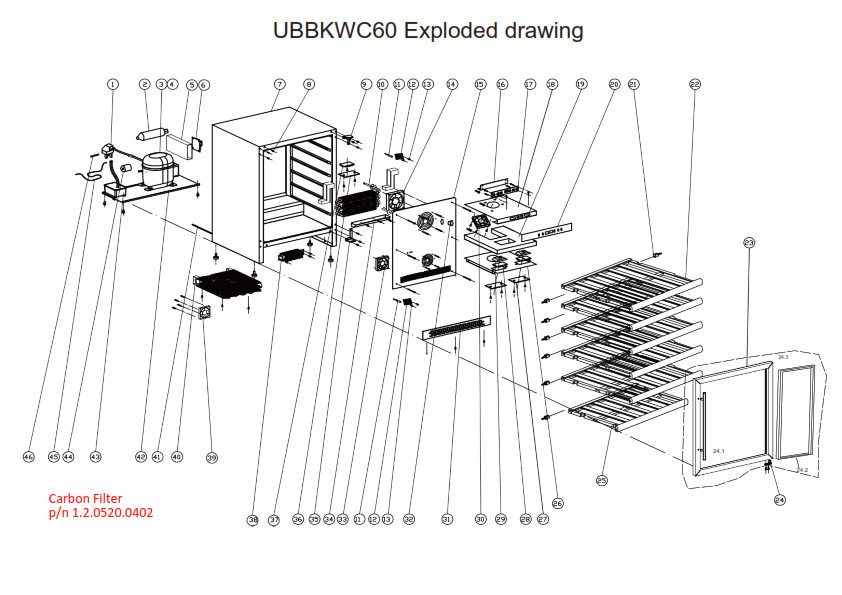

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 1.3.0220.0041
POWER CABLE (TYPE G PLUG) | Low Stock | 12.49 | |
| 2 | 1.1.0220.0062
DRY FILTER | In Stock | 10.99 | |
| 3 | 1.3.0100.0063
COMPRESSOR ASSY | Low Stock | 60.00 | |
| 4 | 1.3.0320.0063
COMPRESSOR GROUND WIRE | Not Available | ||
| 5 | 1.2.0520.0011
POWER BOARD PROTECTIVE COVER | Low Stock | 4.99 | |
| 6 | 1.3.0420.0096
POWER BOARD | In Stock | 45.99 | |
| 7 | 25117050
CABINET ASSY | Not Available | ||
| 8 | 1.2.0520.0029
HINGE SCREW HOLE PLUG (BLK) | Low Stock | 3.99 | |
| 9 | 1.1.0520.0220
RIGHT UPPER HINGE | Low Stock | Contact Us | |
| 10 | 1.1.0220.0044
EVAPORATOR | Not Available | ||
| 11 | 1.3.0320.0275
AIR THERMISTOR | Low Stock | 12.99 | |
| 12 | 1.2.0520.0022
AIR THERMISTOR COVER | Low Stock | 3.99 | |
| 13 | 1.2.0520.0023
SCREW OF AIR THERMISTOR COVER | Not Available | ||
| 14-30 | 1.3.0620.0001
INTERIOR FAN MOTOR | Low Stock | 19.99 | |
| 15 | 1.2.0220.0002
AIR DUCT | Low Stock | 12.99 | |
| 16-A | 1.2.0520.0039
CONTROL PCB BRACKET | Low Stock | 3.99 | |
| 16-B | 1.2.0520.0075
CONTROL PCB BRACKET | Low Stock | 4.99 | |
| 17 | 1.3.0420.0014
CONTROL PCB | Low Stock | 29.99 | |
| 18 | 1.1.0820.0008
AIR DUCT | Low Stock | 12.99 | |
| 19 | 1.6.0120.0056
SPACER POLYFOAM | Not Available | ||
| 20 | 1.2.0520.0038
SHELF LIMIT COLUMN | Low Stock | 3.99 | |
| 22 | 1.5.0120.0010
SHELF | In Stock | 15.00 | |
| 23 | 1.1.0720.0055
DOOR HANDLE (BLACK) | In Stock | Contact Us | |
| 23 | 1.2.0320.0004
DOOR SEAL | On Order | 14.00 | |
| 23 | 1.4.0320.0042
DOOR ASSY(BLACK GLASS) | Low Stock | Contact Us | |
| 23 | 69417530
COMPLETE DOOR ASSEMBLY(GLASS) | Not Available | ||
| 24 | 1.1.0520.0005
DOOR SHAFT ASSEMBLY | In Stock | 4.99 | |
| 25 | 1.5.0120.0006
BOTTOM SHELF | In Stock | 11.99 | |
| 26 | 1.1.0820.0009
AIR DUCT | Low Stock | 12.99 | |
| 27-36 | 1.2.0520.0016
LED LAMP COVER | Low Stock | 3.99 | |
| 28-37 | 1.3.0520.0038
LED LAMP BOARD | In Stock | 9.99 | |
| 29 | 1.2.0520.0012
LED LAMP BOX | Low Stock | 4.49 | |
| 31 | 1.1.0320.0383
BASE GRILLE | Low Stock | 17.49 | |
| 32 | 1.2.0520.0037
FILTER ACTIVATED CARBON BOX | Low Stock | 15.99 | |
| 33 | 1.3.0620.0004
PTC HEATING ELEMENT FAN | On Order | 9.99 | |
| 34 | 1.2.0520.0026
WATER DRIP TRAY | Low Stock | 3.99 | |
| 35 | 1.1.0520.0608
LOWER HINGE - RIGHT (REPLACES 1.1.0520.0014) | Low Stock | Contact Us | |
| 38 | 1.3.0420.0047
PTC HEATING ELEMENT | In Stock | 19.99 | |
| 39 | 1.3.0620.0014
EXTERIOR FAN MOTOR | In Stock | 19.99 | |
| 40 | 1.1.0220.0025
CONDENSER | Not Available | ||
| 41 | 1.2.0520.0205
SUCTION PIPE | Not Available | ||
| 42 | 1.1.0320.0181
COMPRESSOR BASE | Not Available | ||
| 43 | 1.2.0520.0024
WATER DRIP TRAY | Low Stock | 3.99 | |
| 44 | 1.2.0520.0053
SHOCK ABSORBER | Low Stock | 3.99 | |
| 45 | 1.1.0220.0015
CONNECTING PIPE | Not Available | ||
| 46 | 1.1.0220.0007
COPPER PIPE (EXHAUST PIPE) | Not Available | ||
