| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

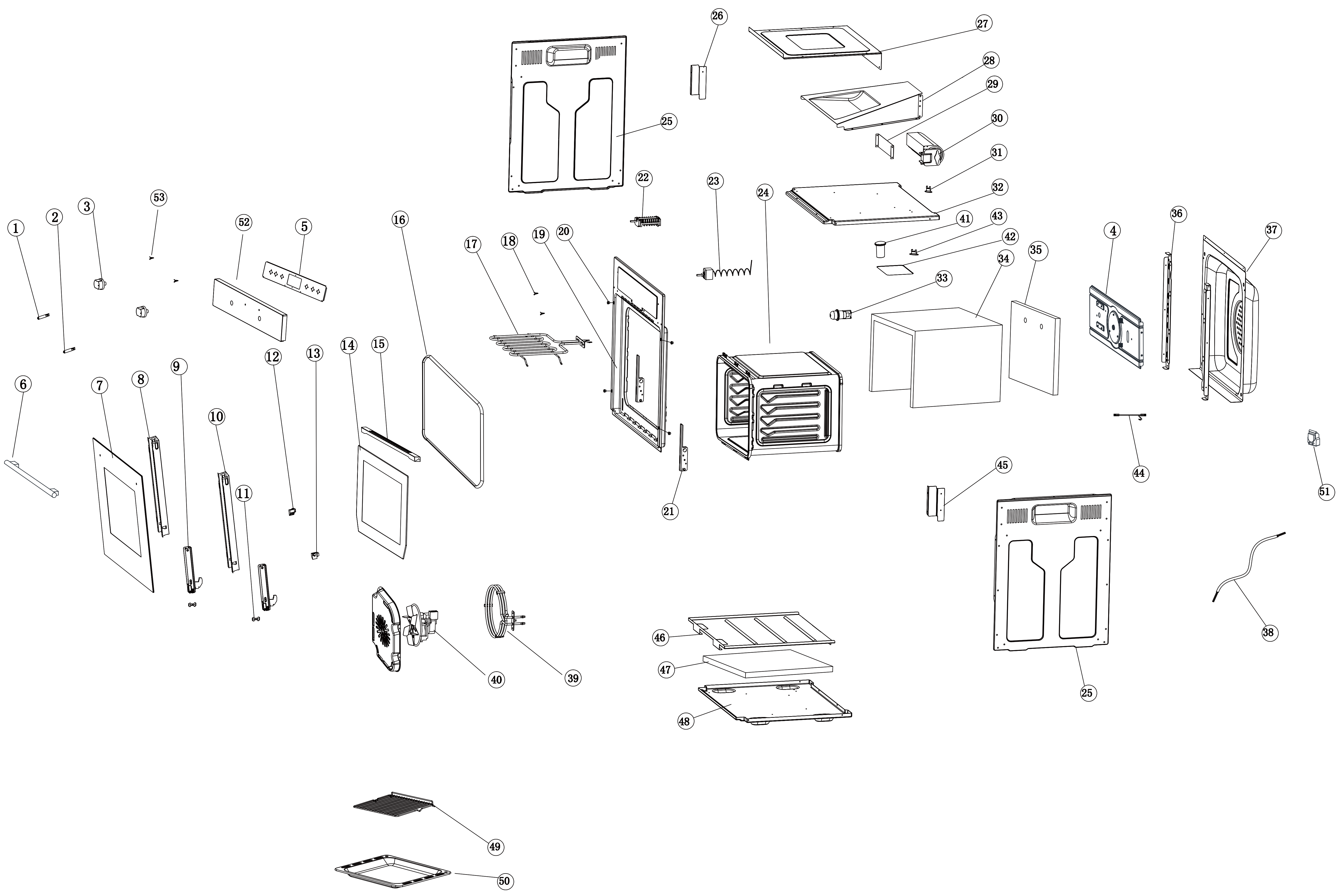

| Drawing 1 | ||||
| CONTROL PA | CUL57MMSS1CA
CONTROL PANEL ASSEMBLY | Low Stock | 99.99 | |
| DOOR | CUL57MMSS1DA
DOOR ASSEMBLY | Low Stock | 99.99 | |
| 1 | 302050500002
INDICATOR LIGHT (GREEN) | In Stock | 4.99 | |
| 2 | 302050500004
INDICATOR LIGHT (RED) | Low Stock | 4.99 | |
| 3 | 302060300011
KNOB | In Stock | 4.99 | |
| 4 | 302011000032
REAR MOTOR BRACKET | Not Available | ||
| 5 | 302011000022
SWITCH BRACKET | Not Available | ||
| 6 | 302060200003
DOOR - HANDLE | Low Stock | 17.99 | |
| 7 | 302070200011
DOOR - OUTER GLASS | Low Stock | 39.99 | |
| 8 | 302020200031
DOOR - SUPPORT BRACKET (RH) | Not Available | ||
| 9 | 302060400016
DOOR - HINGE | In Stock | 14.99 | |
| 10 | 302020200033
DOOR - SUPPORT BRACKET (LH) | Not Available | ||
| 11 | 302019900009
HINGE PLATE | Not Available | ||
| 12 | 302069900036
DOOR - INNER GLASS SUPPORT (RH) | Low Stock | 14.99 | |
| 13 | 302069900035
DOOR - INNER GLASS SUPPORT (LH) | Low Stock | 14.99 | |
| 14 | 302070400010
DOOR - INNER GLASS | Low Stock | 34.99 | |
| 15 | 302020200029
DOOR - UPPER BRACKET | Low Stock | 14.99 | |
| 16 | 202010400002
DOOR GASKET | In Stock | 14.99 | |
| 17 | 302050100016
ELEMENT - GRILL/UPPER | In Stock | 29.99 | |
| 18 | 302019900033
RETAINING CLIP | Not Available | ||
| 19 | 302020100024
DOOR FRAME | Not Available | ||
| 20 | 399010500088
OVEN MOUNTING SCREW/GROMMET | Not Available | ||
| 21 | 302011000149
HINGE RECEIVER PLATE | Low Stock | 6.99 | |
| 22 | 302050300002
FUNCTION SELECTOR SWITCH | In Stock | 29.99 | |
| 23 | 302050700002
OVEN THERMOSTAT | Not Available | ||
| 24 | 302030100094
CAVITY ASSEMBLY $$$ | Not Available | ||
| 25 | 302010300003
LEFT/RIGHT SIDE PANEL $$$ | Not Available | ||
| 26 | 302019900038
SMALL HARDWARE | Not Available | ||
| 27 | 302010500003
TOP PANEL | Not Available | ||
| 28 | 302011700003
COOLING FAN SHROUD | Low Stock | 19.99 | |
| 29 | 302019900035
SMALL HARDWARE | Not Available | ||
| 30 | 302050200008
COOLING FAN ASSEMBLY | In Stock | 14.99 | |
| 31 | 302050600004
THERMOSTAT | Low Stock | 29.99 | |
| 32 | 302010600002
UPPER HEAT SHIELD | Not Available | ||
| 33 | 302050500011
LAMP ASSEMBLY | In Stock | 13.99 | |
| 34 | 604022000006
CAVITY INSULATION $$$ | Not Available | ||
| 35 | 604022000007
CAVITY INSULATION (REAR) $$$ | Not Available | ||
| 36 | 302011000049
REAR COVER CONNECTING FRAME | Not Available | ||
| 37 | 302010400006
REAR PANEL | Not Available | ||
| 38 | 302050800043
POWER CORD | Low Stock | 12.99 | |
| 39 | 302050100009
ELEMENT - REAR | In Stock | 29.99 | |
| 40 | 302050200001
FAN ASSEMBLY - REAR | Low Stock | 19.99 | |
| 41 | 302011800001
EXHAUST | Not Available | ||
| 42 | 302011900005
WIND SHIELD | Not Available | ||
| 43 | 302050600002
THERMOSTAT | Low Stock | 29.99 | |
| 44 | 302050900049
WIRING HARNESS | In Stock | 29.99 | |
| 45 | 302019900039
SMALL HARDWARE | Not Available | ||
| 46 | 302010800001
BOTTOM SHIELD | Not Available | ||
| 47 | 604022000002
CAVITY INSULATION (BOTTOM) $$$ | Not Available | ||
| 48 | 302010800001
BASE PLATE | Not Available | ||
| 49 | 302060100029
ACCESSORY - WIRE SHELF | Low Stock | 19.99 | |
| 50 | 302030600023
ACCESSORY - TRIVET | Low Stock | 19.99 | |
| 51 | 302051000002
JUNCTION BOX | In Stock | 12.99 | |
| 52 | 302010100024
FRONT CONTROL PANEL | Low Stock | 19.99 | |
| 53 | 302011000020
LIGHT DIFFUSER | Not Available | ||
| 54 | 302011700003
FAN COVER | Low Stock | 19.99 | |
